This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistant with irradiated PE. Suitable for the consideration of the flexibility and shielding characteristic. Shielding wire is consist of drain wire included AI-Mylar tape around core.

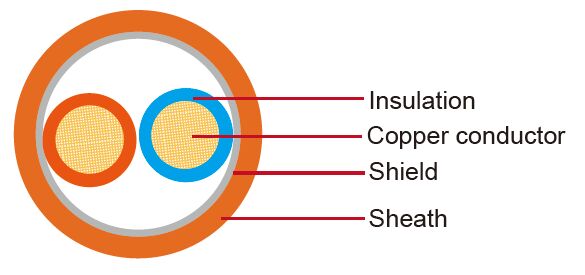

导体:软铜绞线
绝缘: XLPE
屏蔽: AI-Mylar Tape
护套:PVC
标准: JASO D608; HMC ES SPEC
操作温度:–40 °C to +120 °C
导体 | 绝缘 | 成缆 | |||||
---|---|---|---|---|---|---|---|
标称导体截面积 | 股数/直径 | 最大直径 | 20°C时的最大电阻值 | 绝缘厚度 | 最小外径 | 最大外径 | 重量 |
mm2 | no./mm | mm | mΩ/m | mm | mm | mm | kg/km |
1/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 3.4 | 3.6 | 17 |
2/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 3.9 | 4.1 | 24 |
3/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 4.1 | 4.3 | 29 |
4/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 4.4 | 4.7 | 35 |
1/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 3.6 | 3.8 | 20 |
2/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 4.3 | 4.5 | 28 |
3/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 4.7 | 4.9 | 38 |
4/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 5.1 | 5.3 | 46 |
1/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 3.8 | 4.0 | 23 |
2/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 4.9 | 5.1 | 38 |
3/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 5.1 | 5.3 | 49 |
4/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 5.6 | 5.8 | 60 |
1/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 4.1 | 4.3 | 28 |
2/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 5.5 | 5.7 | 48 |
3/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 5.8 | 6.0 | 64 |
4/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 6.3 | 6.5 | 80 |
**注:此处未指定的其他配置,大小,颜色和长度可根据要求提供。
