This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistance with irradiated PE. Suitable for the consideration of the shielding characteristic.

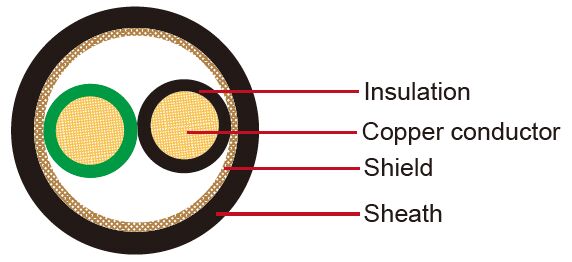

导体:软铜绞线
绝缘: XLPE
屏蔽:镀锡软铜
护套:PVC
标准: JASO D611; ES SPEC
操作温度:–40 °C to +120 °C
导体 | 绝缘 | 成缆 | |||||
---|---|---|---|---|---|---|---|
标称导体截面积 | 股数/直径 | 最大直径 | 20°C时的最大电阻值 | 绝缘厚度 | 最小外径 | 最大外径 | 重量 |
mm2 | no./mm | mm | mΩ/m | mm | mm | mm | kg/km |
0.5 | 20/0.18 | 0.93 | 0.037 | 0.6 | 3.7 | 3.9 | 21 |
0.85 | 34/0.18 | 1.21 | 0.022 | 0.6 | 4.2 | 4.4 | 27 |
1.25 | 50/0.18 | 1.50 | 0.015 | 0.6 | 4.5 | 4.7 | 31 |
**注:此处未指定的其他配置,大小,颜色和长度可根据要求提供。
