此电缆是为在海上应用，不需要机械保护。应用实例包括船舶和海上钻井平台和石油平台的固定布线。
 |
 |

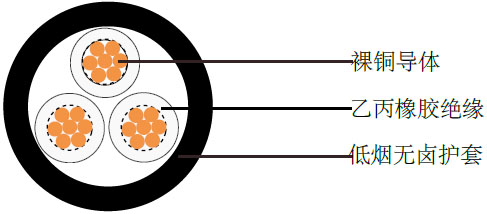

| - 多股镀锡退火铜丝 |
| - 多股遵循BS 6360 Cl-2/IEC 60228 Cl-2 |
| - EPR(乙丙橡胶)绝缘，遵循BS 6899 |
| - LSOH(低烟无卤), SW4，遵循BS 6899 |
| 1芯: 黑色/黄绿色 |
| 2芯及以上: 白色绝缘加黑色数字标注 |
| 工作电压 | 600/1000V |
|---|---|
| 测试电压 | 2000V |
| 最小弯曲半径 | 达到10mm² - 3×外径 |
| 10mm²-25mm² - 4×外径 | |
| 25mm²以上 - 6×外径 | |
| 工作温度范围 | -25º C～+85º C |
| 阻燃 | IEC 60332.1 |
| 绝缘电阻 | 20 MΩ×km |
| 氧指数32%, HCL 5% | |
| 线规 | 芯数×导体截面积 | 标称绝缘厚度 | 标称护套厚度 | 标称外径 | 标称电缆重量 |
|---|---|---|---|---|---|
| (股数/直径) | #×mm² | mm | mm | mm | kg/km |
| 6571TQ | |||||
| 17(7/26) | 1×1.0 | 0.8 | 1 | 5.2 | 41 |
| 16(7/24) | 1×1.5 | 0.8 | 1 | 5.5 | 47 |
| 14(7/22) | 1×2.5 | 0.8 | 1 | 6 | 55 |
| 12(7/20) | 1×4 | 1 | 1 | 6.9 | 84 |
| 10(7/18) | 1×6 | 1 | 1 | 7.5 | 110 |
| 8(7/16) | 1×10 | 1.2 | 1.1 | 9 | 165 |
| 6(7/14) | 1×16 | 1.2 | 1.1 | 101 | 235 |
| 4(7/12) | 1×25 | 1.4 | 1.2 | 12.4 | 375 |
| 2(7/10) | 1×35 | 1.4 | 1.2 | 13.3 | 460 |
| 1(19/13) | 1×50 | 1.6 | 1.3 | 15.2 | 670 |
| 2/0(19/11) | 1×70 | 1.6 | 1.4 | 17.2 | 835 |
| 3/0(19/10) | 1×95 | 1.8 | 1.4 | 19.3 | 1200 |
| 4/0(37/12) | 1×120 | 1.8 | 1.5 | 21.4 | 1410 |
| 300MCM(37/11) | 1×150 | 2 | 1.6 | 23.5 | 1890 |
| 350MCM(37/10) | 1×185 | 2.2 | 1.7 | 26 | 2360 |
| 500MCM(61/11) | 1×240 | 2.4 | 1.8 | 29.2 | 3050 |
| -(61/10) | 1×300 | 2.6 | 1.9 | 32.3 | 3700 |
| -(61/9) | 1×400 | 2.8 | 2.1 | 36.4 | 4400 |
| -(61/8) | 1×500 | 3 | 2.2 | 40.2 | 5360 |
| -(127/10) | 1×630 | 3 | 2.3 | 44.1 | 6660 |
| 6572TQ | |||||
| 17(7/26) | 2×1.0 | 0.8 | 1 | 8 | 85 |
| 16(7/24) | 2×1.5 | 0.8 | 1 | 8.6 | 115 |
| 14(7/22) | 2×2.5 | 0.8 | 1.1 | 9.8 | 147 |
| 12(7/20) | 2×4 | 1 | 1.2 | 12 | 225 |
| 10(7/18) | 2×6 | 1 | 1.2 | 13.1 | 285 |
| 8(7/16) | 2×10 | 1.2 | 1.3 | 16 | 440 |
| 6(7/14) | 2×16 | 1.2 | 1.4 | 18.3 | 635 |
| 4(7/12) | 2×25 | 1.4 | 1.6 | 22.9 | 1020 |
| 2(7/10) | 2×35 | 1.4 | 1.6 | 24.7 | 1230 |
| 1(19/13) | 2×50 | 1.6 | 1.8 | 28.4 | 1650 |
| 2/0(19/11) | 2×70 | 1.6 | 1.9 | 32.3 | 2200 |
| 3/0(19/10) | 2×95 | 1.8 | 2.1 | 37 | 2940 |
| 4/0(37/12) | 2×120 | 1.8 | 2.2 | 40.8 | 3680 |
| 300MCM(37/11) | 2×150 | 2 | 2.4 | 45.1 | 4450 |
| 350MCM(37/10) | 2×185 | 2.2 | 2.6 | 50 | 5600 |
| 500MCM(61/11) | 2×240 | 2.4 | 2.8 | 56.6 | 7260 |
| -(61/10) | 2×300 | 2.6 | 3 | 62.7 | 9020 |
| 6573TQ | |||||
| 17(7/26) | 3×1.0 | 0.8 | 1 | 8.4 | 95 |
| 16(7/24) | 3×1.5 | 0.8 | 1.1 | 9.3 | 130 |
| 14(7/22) | 3×2.5 | 0.8 | 1.1 | 10.4 | 175 |
| 12(7/20) | 3×4 | 1 | 1.2 | 12.7 | 270 |
| 10(7/18) | 3×6 | 1 | 1.2 | 13.9 | 355 |
| 8(7/16) | 3×10 | 1.2 | 1.4 | 17.2 | 570 |
| 6(7/14) | 3×16 | 1.2 | 1.4 | 19.5 | 790 |
| 4(7/12) | 3×25 | 1.4 | 1.6 | 24.4 | 1290 |
| 2(7/10) | 3×35 | 1.4 | 1.7 | 26.5 | 1590 |
| 1(19/13) | 3×50 | 1.6 | 1.8 | 30.3 | 2150 |
| 2/0(19/11) | 3×70 | 1.6 | 2 | 34.7 | 2920 |
| 3/0(19/10) | 3×95 | 1.8 | 2.2 | 39.7 | 3790 |
| 4/0(37/12) | 3×120 | 1.8 | 2.3 | 43.8 | 4790 |
| 300MCM(37/11) | 3×150 | 2 | 2.5 | 48.4 | 5860 |
| 350MCM(37/10) | 3×185 | 2.2 | 2.7 | 53.9 | 7290 |
| 500MCM(61/11) | 3×240 | 2.4 | 3 | 61.1 | 9500 |
| -(61/10) | 3×300 | 2.6 | 3.2 | 67.6 | 11960 |
| 6574TQ | |||||
| 17(7/26) | 4×1.0 | 0.8 | 1.1 | 9.3 | 130 |
| 16(7/24) | 4×1.5 | 0.8 | 1.1 | 10.1 | 160 |
| 14(7/22) | 4×2.5 | 0.8 | 1.1 | 11.4 | 220 |
| 12(7/20) | 4×4 | 1 | 1.2 | 13.9 | 345 |
| 10(7/18) | 4×6 | 1 | 1.3 | 15.4 | 450 |
| 8(7/16) | 4×10 | 1.2 | 1.4 | 18.9 | 700 |
| 6(7/14) | 4×16 | 1.2 | 1.5 | 21.7 | 1020 |
| 4(7/12) | 4×25 | 1.4 | 1.7 | 27.1 | 1630 |
| 2(7/10) | 4×35 | 1.4 | 1.8 | 29.4 | 2058 |
| 1(19/13) | 4×50 | 1.6 | 2 | 33.9 | 2700 |
| 2/0(19/11) | 4×70 | 1.6 | 2.1 | 38.5 | 3730 |
| 3/0(19/10) | 4×95 | 1.8 | 2.4 | 44.5 | 4960 |
| 4/0(37/12) | 4×120 | 1.8 | 2.5 | 48.9 | 6240 |
| 300MCM(37/11) | 4×150 | 2 | 2.7 | 54.1 | 7600 |
| 350MCM(37/10) | 4×185 | 2.2 | 2.9 | 60 | 9510 |
| 500MCM(61/11) | 4×240 | 2.4 | 3.2 | 68 | 12410 |
| -(61/10) | 4×300 | 2.6 | 3.5 | 75.7 | 15200 |
| 6575TQ | |||||
| 17(7/26) | 5×1.0 | 0.8 | 1.1 | 10.1 | 155 |
| 16(7/24) | 5×1.5 | 0.8 | 1.1 | 11 | 190 |
| 14(7/22) | 5×2.5 | 0.8 | 1.2 | 12.6 | 280 |
| 12(7/20) | 5×4 | 1 | 1.3 | 15.3 | 425 |
| 6576TQ | |||||
| 17(7/26) | 6×1.0 | 0.8 | 1.1 | 11.1 | 180 |
| 16(7/24) | 6×1.5 | 0.8 | 1.2 | 12.2 | 240 |
| 14(7/22) | 6×2.5 | 0.8 | 1.2 | 13.7 | 330 |
| 12(7/20) | 6×4 | 1 | 1.3 | 16.7 | 505 |
| 6577TQ | |||||
| 17(7/26) | 7×1.5 | 0.8 | 1.2 | 12.2 | 260 |
| 16(7/24) | 7×2.5 | 0.8 | 1.2 | 14 | 365 |
| 65712TQ | |||||
| 17(7/26) | 12×1.5 | 0.8 | 1.2 | 15.9 | 380 |
| 16(7/24) | 12×2.5 | 0.8 | 1.2 | 18.6 | 589 |
| 65716TQ | |||||
| 17(7/26) | 16×1.5 | 0.8 | 1.2 | 17.8 | 500 |
| 16(7/24) | 16×2.5 | 0.8 | 1.2 | 20.9 | 750 |
| 65719TQ | |||||
| 17(7/26) | 19×1.5 | 0.8 | 1.2 | 18.8 | 590 |
| 16(7/24) | 19×2.5 | 0.8 | 1.2 | 22 | 860 |
| 65724TQ | |||||
| 17(7/26) | 24×1.5 | 0.8 | 1.2 | 21.8 | 740 |
| 16(7/24) | 24×2.5 | 0.8 | 1.2 | 25.9 | 1090 |
