AHFX 日标汽车电缆

Article source:http://www.trcables.com/   author:上海嗨润   Release time:2018-03-09 09:07   Browse times:second

Return:日标

AHFX 日标汽车电缆

应用

This Fluoroelastomer insulated single-core cable is used in Fuel Pump and Transmission for automobiles, Superior oil resistance, Suitable for the consideration of the flexibility and thermal resistance.

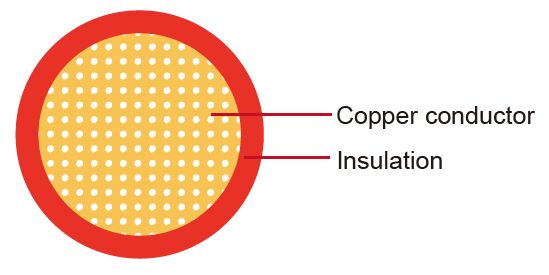

结构:

AHFX 日标汽车电缆

导体:Tin coated annealed stranded copper
绝缘: Fluoroelastomer
标准: KIS-ES-8093

技术参数:

操作温度: –40 °C to +200°C

  导体 绝缘 成缆
标称导体截面积 股数/直径 最大直径 20°C时的最大电阻值 绝缘厚度 最小外径 最大外径 重量
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x0.50 20/0.18 0.9 38.2 0.4 1.55 1.85 7.8
1x0.75 19/0.23 1.2 24.7 0.4 1.75 2.05 10.8
1x1.25 50/0.18 1.4 15.9 0.4 2.15 2.45 16.7
1x2.00 37/0.26 1.8 10.5 0.4 2.45 2.75 23.5

**注:此处未指定的其他配置,大小,颜色和长度可根据要求提供。
