该PVC绝缘单芯电缆 适用于汽车、车辆和摩托车。

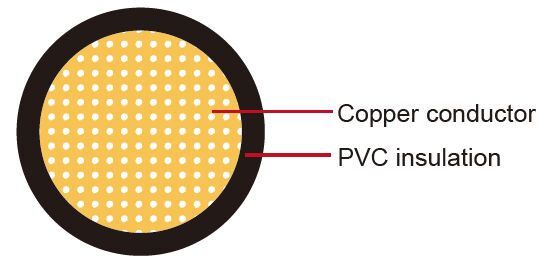

导体: Stranded ,bare copper
绝缘: PVC
标准: JASO D 611-09 JASO D608
操作温度: –40 °C to +100 °C
额定电压:25VA and 60 VDC
导体 | 绝缘 | 成缆 | |||||
---|---|---|---|---|---|---|---|
标称导体截面积 | 股数/直径 | 最大直径 | 20°C时的最大电阻值 | 绝缘厚度 | 最小外径 | 最大外径 | 重量 |
mm2 | no./mm | mm | mΩ/m | mm | mm | mm | kg/km |
1x0.3f | 19/0.16 | 0.8 | 48.6 | 0.3 | 1.4 | 1.5 | 5 |
1x0.5f | 19/0.16 | 1.0 | 34.6 | 0.3 | 1.6 | 1.7 | 7 |
1x0.75f | 19/0.23 | 1.2 | 23.6 | 0.3 | 1.8 | 1.9 | 10 |
1x1.25f | 37/0.21 | 1.5 | 14.6 | 0.3 | 2.1 | 2.2 | 14 |
The “f“ in the nominal size column indicates a flexile conductor with a fine wire diameter.
*注:此处未指定的其他配置,大小,颜色和长度可根据要求提供。
