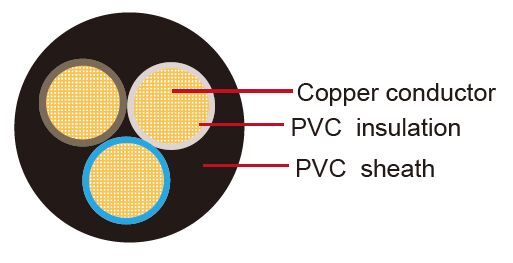

This PVC insulated, PVC sheathed cable is used for low voltage electrical installations in vehicles.
导体： Cu-ETP1 裸铜符合DIN EN13602标准
绝缘： PVC
护套: PVC
标准: ISO 6722 Class B
操作温度：–40 °C to +105 °C
| 导体 | 绝缘 | 成缆 | ||||
|---|---|---|---|---|---|---|
| 标称导体截面积 | 股数/直径 | 20°C时的最大电阻值 | 绝缘厚度 | 单芯直径 | 护套厚度 | 最大外径 |
| mm2 | No./mm | mΩ/m | mm | mm | mm | mm |
| 1x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.4 | 2.2 |
| 2x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 3.7 |
| 3x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 3.9 |
| 4x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 4.3 |
| 5x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 4.6 |
| 7x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 5.0 |
| 10x0.35 | 12/0.21 | 52.0 | 0.20 | 1.3 | 0.5 | 6.4 |
| 1x0.5 | 16/0.21 | 37.1 | 0.22 | 1.3 | 0.6 | 2.5 |
| 2x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 4.5 |
| 3x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 4.8 |
| 4x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 5.2 |
| 5x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 5.6 |
| 7x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 6.1 |
| 10x0.5 | 16/0.21 | 37.1 | 0.22 | 1.6 | 0.6 | 7.7 |
| 1x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.4 | 2.8 |
| 2x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 5.1 |
| 3x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 5.4 |
| 4x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 5.9 |
| 5x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 6.4 |
| 7x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.6 | 7.0 |
| 10x0.75 | 24/0.21 | 24.7 | 0.24 | 1.9 | 0.8 | 9.3 |
| 1x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.4 | 3.0 |
| 2x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 5.5 |
| 3x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 5.8 |
| 4x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 6.4 |
| 5x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.6 | 7.0 |
| 7x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.8 | 8.0 |
| 10x1.0 | 32/0.21 | 18.5 | 0.24 | 2.1 | 0.8 | 10.1 |
| 1x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.4 | 3.3 |
| 2x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 6.1 |
| 3x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 6.4 |
| 4x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 7.1 |
| 5x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.6 | 7.8 |
| 7x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.8 | 8.9 |
| 10x1.5 | 30/0.26 | 12.7 | 0.24 | 2.4 | 0.8 | 11.4 |
| 1x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.4 | 3.9 |
| 2x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.6 | 7.3 |
| 3x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.6 | 7.8 |
| 4x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.6 | 8.6 |
| 5x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.8 | 9.8 |
| 7x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.8 | 10.7 |
| 10x2.5 | 50/0.26 | 7.6 | 0.28 | 3.0 | 0.8 | 13.7 |
*注：此处未指定的其他配置，大小，颜色和长度可根据要求提供。
