This XLPE insulated single-core cable is used in motor and battery ground low voltage circuit applications with high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and abrasion resistance are necessary.

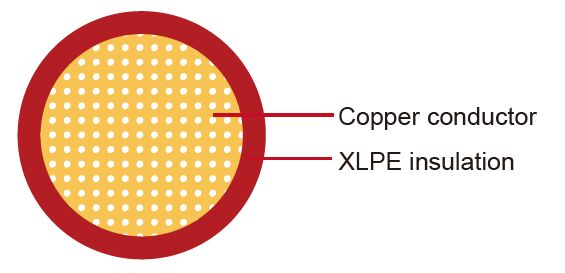

导体:Annealed stranded copper(Type A)
绝缘:XLPE
标准: ISO 6722 Class C
工作温度: –40°C - +105°C
导体 | 绝缘 | 成缆 | |||||
---|---|---|---|---|---|---|---|
标称导体截面积 | 股数/直径 | 最大直径 | 20°C时的最大电阻值 | 绝缘厚度 | 最小外径 | 最大外径 | 重量 |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
0.22 | 7/0.21 | 0.7 | 86.5 | 0.2 | 1.15 | 1.2 | 3.4 |
0.35 | 7/0.27 | 0.9 | 54.4 | 0.25 | 1.2 | 1.3 | 4. |
0.5 | 19/0.19 | 1.1 | 37.1 | 0.28 | 1.4 | 1.6 | 7 |
0.75 | 19/0.24 | 1.3 | 24.7 | 0.3 | 1.7 | 1.9 | 9.5 |
1 | 19/0.27 | 1.5 | 18.5 | 0.3 | 1.9 | 2.1 | 12 |
1.5 | 19/0.33 | 1.8 | 12.7 | 0.3 | 2.2 | 2.4 | 17 |
2.0 | 19/0.38 | 2.0 | 9.42 | 0.28 | 2.8 | 2.85 | 26 |
2.5 | 37/0.28 | 2.2 | 7.6 | 0.35 | 2.7 | 3.0 | 27 |
*注:此处未指定的其他配置,大小,颜色和长度可根据要求提供。
