该PFA绝缘的汽车电缆用于电缆束,电缆具有优良的耐化学性,可作为聚四氟乙烯的替代品。

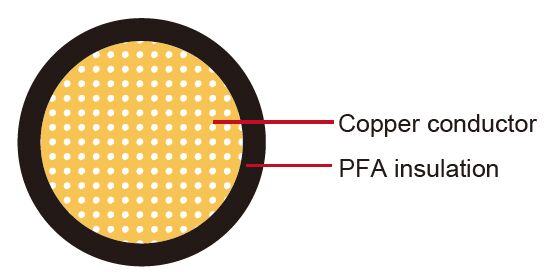

导体:镀银或镀镍铜
绝缘:PFA
标准:ISO 6722 Class H
操作温度: –80°C to +260°C
导体 | 绝缘 | 成缆 | |||||
---|---|---|---|---|---|---|---|
标称导体截面积 | 股数/直径 | 最大直径 | 20°C时的最大电阻值 | 绝缘厚度 | 最小外径 | 最大外径 | 重量 |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
1x0.5 | 19/0.19 | 1.00 | 38.2 | 0.22 | 1.4 | 1.60 | 7 |
1x0.75 | 19/0.22 | 1.20 | 25.4 | 0.24 | 1.7 | 1.90 | 10 |
1x1 | 19/0.25 | 1.35 | 19.1 | 0.24 | 1.9 | 2.10 | 12 |
1x1.5 | 19/0.32 | 1.70 | 13 | 0.24 | 2.2 | 2.40 | 17 |
1x2.5 | 19/0.40 | 2.20 | 7.8 | 0.28 | 2.7 | 3.00 | 28 |
1x4 | 56/0.30 | 2.70 | 4.8 | 0.32 | 3.4 | 3.70 | 45 |
