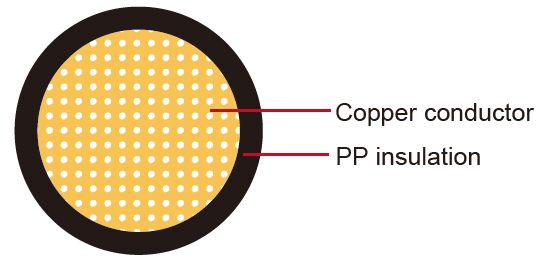

该PP绝缘单芯电缆用于电缆线束,无卤素。
导体:Cu-ETP1 裸铜导体符合 DIN EN13602 标准
绝缘:聚丙烯绝缘(PP)
标准:ISO 6722 Class C
操作温度:–40°C to +125°C
导体 | 绝缘 | 成缆 | |||||
---|---|---|---|---|---|---|---|
标称导体截面积 | 股数/直径 | 最大直径 | 20°C时的最大电阻值 | 绝缘厚度 | 最小外径 | 最大外径 | 重量 |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
1x0.22 | 7/0.21 | 0.70 | 86.5 | 0.20 | 1.10 | 1.20 | 3.1 |
1x0.35 | 7/0.26 | 0.70 | 55.5 | 0.20 | 1.20 | 1.30 | 4.5 |
1x0.50 | 19/0.19 | 1.00 | 38.2 | 0.22 | 1.40 | 1.60 | 6.6 |
1x0.75 | 19/0.23 | 1.20 | 25.4 | 0.24 | 1.70 | 1.90 | 9.0 |
1x1.00 | 19/0.26 | 1.35 | 19.1 | 0.24 | 1.90 | 2.10 | 11 |
1x1.50 | 19/0.32 | 1.70 | 13.0 | 0.24 | 2.20 | 2.40 | 16 |
1x2.50 | 19/0.41 | 2.20 | 7.82 | 0.28 | 2.70 | 3.00 | 26 |
1x4.00 | 37/0.38 | 2.70 | 4.92 | 0.32 | 3.40 | 3.70 | 42 |
1x6.00 | 37/0.45 | 3.40 | 3.23 | 0.32 | 4.00 | 4.30 | 61 |
