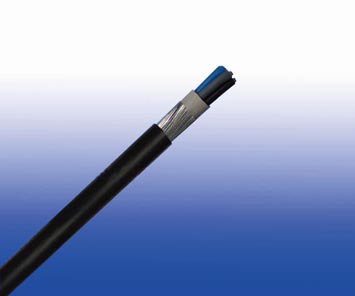

IEC 60502-1低压600/1000V XLPE绝缘PVC护套电缆主要应用于发电站、公共交通客运系统、机场、石化工厂、酒店、医院、高层建筑等的配线电缆。
标准适应 IEC 60502-1
| 阻燃性（单根垂直线缆测试） | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|---|---|
| 降低火蔓延（垂直安装的成束电缆测试） | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24;VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| 无卤 | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1; BS 6425-1* |
| 无腐蚀性气体排放 | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI 20-37/2-2; BS 6425-2* |
| 最小烟雾释放 | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| 无有毒气体 | NES 02-713; NF C 20-454 |
注：*表示该标准已经被取代
600/1000V

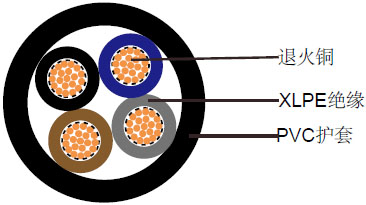

| 导体 | 平纹退火铜，多股绞合符合IEC(EN) 60228 class 2 |
|---|---|
| 绝缘 | 交联聚乙烯复合物 |
| 外护套 | 热塑性PVC复合物，抵抗紫外线, 耐碳氢化合物、耐油、反啮齿动物和抗白蚁属性可以被作为选项。符合防火性能标准(IEC 60332 - 1,IEC 60332 - 3,UL 1581,UL 1666等)取决于氧指数的PVC复合物的全方位电缆设计。LSPVC也可以根据要求提供。 |
绝缘颜色遵循标准 BS 7671
| 带接地导体 | 不带接地导体 | |
|---|---|---|
| 2芯 | - | 棕色， 蓝色 |
| 3芯 | 黄绿线, 棕色，蓝色 | 棕色, 灰色, 黑色 |
| 4芯 | 黄绿线，棕色，灰色，黑色 | 棕色, 灰色, 黑色, 蓝色 |
| 5芯 | 黄绿线，棕色，灰色，黑色, 蓝色 | 棕色, 灰色, 黑色, 蓝色, 黑色 |
| 5芯以上 | 黄绿线, 黑色数根 | 黑色数根 |
护套颜色：黑色或根据客户要求
| 工作温度范围 | 最大90°C对于XLPE |
|---|---|
| 短路过载温度可达250°C(5s) | |
| 最小弯曲半径 | 8 x 总外径 |
| 导体 | FGD400 1RV-R | ||||
|---|---|---|---|---|---|
| 芯数/截面积 | 股数/单丝直径 | 标称绝缘厚度 | 标称总外径 | 大约重量 | |
| mm² | No./mm | mm | mm | mm | |
| 2 芯 | |||||
| 2×1.5 | 7/0.53 | 0.7 | 10.0 | 126 | |
| 2×2.5 | 7/0.67 | 0.7 | 10.8 | 158 | |
| 2×4 | 7/0.85 | 0.7 | 11.9 | 205 | |
| 2×6 | 7/1.04 | 0.7 | 13.0 | 264 | |
| 2×10 | 7/1.35 | 0.7 | 14.9 | 378 | |
| 2×16 | 7/1.70 | 0.7 | 17.0 | 534 | |
| 2×25 | 7/2.14 | 0.9 | 20.4 | 650 | |
| 2×35 | 7/2.52 | 0.9 | 22.7 | 880 | |
| 3 芯 | |||||
| 3×1.5 | 7/0.53 | 0.7 | 10.5 | 145 | |
| 3×2.5 | 7/0.67 | 0.7 | 11.4 | 185 | |
| 3×4 | 7/0.85 | 0.7 | 12.5 | 247 | |
| 3×6 | 7/1.04 | 0.7 | 13.8 | 323 | |
| 3×10 | 7/1.35 | 0.7 | 15.8 | 474 | |
| 3×16 | 7/1.70 | 0.7 | 18.0 | 682 | |
| 3×25 | 7/2.14 | 0.9 | 21.7 | 910 | |
| 3×35 | 7/2.52 | 0.9 | 24.0 | 1180 | |
| 3×50 | 19/1.78 | 1.0 | 25.5 | 1600 | |
| 3×70 | 19/2.14 | 1.1 | 29.0 | 2240 | |
| 3×95 | 19/2.52 | 1.1 | 33.5 | 3050 | |
| 3×120 | 37/2.03 | 1.2 | 37.5 | 3800 | |
| 3×150 | 37/2.25 | 1.4 | 40.5 | 4640 | |
| 3×185 | 37/2.52 | 1.6 | 45.0 | 5870 | |
| 3×240 | 61/2.25 | 1.7 | 50.5 | 7670 | |
| 3×300 | 61/2.52 | 1.8 | 57.0 | 9460 | |
| 3×400 | 61/2.85 | 2.0 | 63.0 | 11945 | |
|
|||||
| 3 芯 + 1 芯 Earth 导体 | |||||
| 3×10/6 | 7/1.35 | 0.7 | 16.5 | 543 | |
| 3×16/10 | 7/1.70 | 0.7 | 18.85 | 793 | |
| 3×25/10 | 7/2.14 | 0.9 | 22.1 | 1021 | |
| 3×25/16 | 7/2.14 | 0.9 | 23.0 | 1070 | |
| 3×35/16 | 19/1.53 | 0.9 | 24.3 | 1349 | |
| 3×35/25 | 19/1.53 | 0.9 | 25.2 | 1470 | |
| 3×50/16 | 19/1.78 | 1 | 26.1 | 1769 | |
| 3×50/25 | 19/1.78 | 1 | 27.3 | 1890 | |
| 3×50/35 | 19/1.78 | 1 | 27.8 | 1995 | |
| 3×70/25 | 19/2.14 | 1.1 | 30.2 | 2530 | |
| 3×70/35 | 19/2.14 | 1.1 | 30.9 | 2660 | |
| 3×70/50 | 19/2.14 | 1.1 | 31.5 | 2840 | |
| 3×95/16 | 19/2.52 | 1.1 | 34.6 | 3240 | |
| 3×95/25 | 19/2.52 | 1.1 | 35.1 | 3340 | |
| 3×95/35 | 19/2.52 | 1.1 | 36.0 | 3470 | |
| 3×95/50 | 19/2.52 | 1.1 | 36.8 | 3650 | |
| 3×120/35 | 37/2.03 | 1.2 | 38.2 | 3920 | |
| 3×120/50 | 37/2.03 | 1.2 | 39.1 | 4400 | |
| 3×120/70 | 37/2.03 | 1.2 | 40.0 | 4610 | |
| 3×120/95 | 37/2.03 | 1.2 | 41.2 | 4820 | |
| 3×150/50 | 37/2.25 | 1.4 | 41.5 | 5240 | |
| 3×150/50 | 37/2.25 | 1.4 | 42.3 | 5450 | |
| 3×150/95 | 37/2.25 | 1.4 | 43.6 | 5660 | |
| 3×150/120 | 37/2.25 | 1.4 | 44.8 | 6240 | |
| 3×185/70 | 37/2.52 | 1.6 | 46.0 | 6470 | |
| 3×185/95 | 37/2.52 | 1.6 | 47.5 | 6680 | |
| 3×185/120 | 37/2.52 | 1.6 | 47.9 | 6990 | |
| 3×185/150 | 37/2.52 | 1.6 | 48.5 | 7395 | |
| 3×240/70 | 61/2.25 | 1.7 | 49.2 | 7580 | |
| 3×240/95 | 61/2.25 | 1.7 | 52.3 | 8480 | |
| 3×240/120 | 61/2.25 | 1.7 | 53.4 | 8690 | |
| 3×240/150 | 61/2.25 | 1.7 | 54.9 | 9095 | |
| 3×300/95 | 61/2.52 | 1.8 | 55.6 | 9380 | |
| 3×300/120 | 61/2.52 | 1.8 | 58.1 | 10480 | |
| 3×300/150 | 61/2.52 | 1.8 | 57.3 | 11170 | |
| 3×300/185 | 61/2.52 | 1.8 | 58.7 | 11480 | |
| 3×300/240 | 61/2.52 | 1.8 | 62.4 | 11290 | |
| 4 芯 | |||||
| 4×1.5 | 7/0.53 | 0.7 | 11.3 | 169 | |
| 4×2.5 | 7/0.67 | 0.7 | 12.3 | 220 | |
| 4×4 | 7/0.85 | 0.7 | 13.6 | 297 | |
| 4×6 | 7/1.04 | 0.7 | 15.0 | 392 | |
| 4×10 | 7/1.35 | 0.7 | 17.2 | 585 | |
| 4×16 | 7/1.70 | 0.7 | 19.7 | 851 | |
| 4×25 | 7/2.14 | 0.9 | 23.9 | 1200 | |
| 4×35(S) | 7/2.52 | 0.9 | 25.0 | 1600 | |
| 4×50(S) | 19/1.78 | 1.0 | 28.0 | 2200 | |
| 4×70(S) | 19/2.14 | 1.1 | 32.0 | 3050 | |
| 4×95(S) | 19/2.52 | 1.1 | 37.0 | 4070 | |
| 4×120(S) | 37/2.03 | 1.2 | 42.0 | 5915 | |
| 4×150(S) | 37/2.25 | 1.4 | 46.0 | 6350 | |
| 4×185(S) | 37/2.52 | 1.6 | 50.0 | 7890 | |
| 4×240(S) | 61/2.25 | 1.7 | 57.0 | 10400 | |
| 4×300(S) | 61/2.52 | 1.8 | 63.0 | 12810 | |
| 4×400(S) | 61/2.85 | 2.0 | 71.0 | 15869 | |
| 4×500(S) | 61/3.20 | 2.2 | 78.0 | 20300 | |
|
|||||
| 4 芯 + 1 芯接地线导体 | |||||
| 4×10/6 | 7/1.35 | 0.7 | 19 | 654 | |
| 4×16/10 | 7/1.70 | 0.7 | 21.95 | 962 | |
| 4×25/10 | 7/2.14 | 0.7 | 26.65 | 1311 | |
| 4×25/16 | 7/2.14 | 0.7 | 27.3 | 1369 | |
| 4×35/16 | 19/1.53 | 0.9 | 27.6 | 1769 | |
| 4×35/25 | 19/1.53 | 0.9 | 28.4 | 1890 | |
| 4×50/16 | 19/1.78 | 1 | 29.4 | 2369 | |
| 4×50/25 | 19/1.78 | 1 | 31.6 | 2490 | |
| 4×50/35 | 19/1.78 | 1 | 33.6 | 3249 | |
| 4×70/25 | 19/2.14 | 1.1 | 34.2 | 3340 | |
| 4×70/35 | 19/2.14 | 1.1 | 35.6 | 3470 | |
| 4×70/50 | 19/2.14 | 1.1 | 37.8 | 3650 | |
| 4×95/16 | 19/2.52 | 1.1 | 41.5 | 4239 | |
| 4×95/25 | 19/2.52 | 1.1 | 42.6 | 4360 | |
| 4×95/35 | 19/2.52 | 1.1 | 43.3 | 4510 | |
| 4×95/50 | 19/2.52 | 1.1 | 44.1 | 4670 | |
| 4×120/35 | 37/2.03 | 1.2 | 42.6 | 6335 | |
| 4×120/50 | 37/2.03 | 1.2 | 43.8 | 6515 | |
| 4×120/70 | 37/2.03 | 1.2 | 45.9 | 6725 | |
| 4×120/95 | 37/2.03 | 1.2 | 46.4 | 6920 | |
| 4×150/70 | 37/2.25 | 1.4 | 47.3 | 6950 | |
| 4×150/95 | 37/2.25 | 1.4 | 48.5 | 7160 | |
| 4×150/120 | 37/2.25 | 1.4 | 50.2 | 7370 | |
| 4×185/70 | 37/2.52 | 1.6 | 53.7 | 7965 | |
| 4×185/95 | 37/2.52 | 1.6 | 52.4 | 8490 | |
| 4×185/120 | 37/2.52 | 1.6 | 53.9 | 8700 | |
| 4×185/150 | 37/2.52 | 1.6 | 55.6 | 8910 | |
| 4×240/70 | 61/2.25 | 1.7 | 59.4 | 9260 | |
| 4×240/95 | 61/2.25 | 1.7 | 59.4 | 9600 | |
| 4×240/120 | 61/2.25 | 1.7 | 61.9 | 11210 | |
| 4×240/150 | 61/2.25 | 1.7 | 63.4 | 11420 | |
| 4×300/95 | 61/2.52 | 1.8 | 67.8 | 12010 | |
| 4×300/120 | 61/2.52 | 1.8 | 64.0 | 12110 | |
| 4×300/150 | 61/2.52 | 1.8 | 66.1 | 13830 | |
| 4×300/185 | 61/2.52 | 1.8 | 71.5 | 14520 | |
| 4×300/240 | 61/2.52 | 1.8 | 72.0 | 14830 | |
|
|||||
| 5 芯 | |||||
| 5×1.5 | 7/0.53 | 0.7 | 13.7 | 205 | |
| 5×2.5 | 7/0.67 | 0.7 | 14.9 | 265 | |
| 5×4 | 7/0.85 | 0.7 | 16.3 | 360 | |
| 5×6 | 7/1.04 | 0.7 | 18.2 | 478 | |
| 5×10 | 7/1.35 | 0.7 | 20.8 | 720 | |
| 5×16 | 7/1.70 | 0.7 | 24.2 | 1050 | |
| 5×25 | 7/2.14 | 0.9 | 29.4 | 1485 | |
| 5×35 | 19/1.53 | 0.9 | 30.3 | 1940 | |
| 5×50 | 19/1.78 | 1 | 34 | 2667 | |
| 5×70 | 19/2.14 | 1.1 | 38.5 | 3698 | |
| 5×95 | 19/2.52 | 1.1 | 44.6 | 4934 | |
| 5×120 | 37/2.03 | 1.2 | 5.8 | 7171 | |
| 5×150 | 37/2.25 | 1.4 | 55.6 | 7699 | |
| 5×185 | 37/2.52 | 1.6 | 60.4 | 9566 | |
| 5×240 | 61/2.25 | 1.7 | 69.1 | 12610 | |
| 5×300 | 61/2.52 | 1.8 | 76.4 | 15532 | |
| 5×400 | 61/2.85 | 2 | 86.1 | 19241 | |
|
(S) - Sectoral Stranded 导体s |
|||||
| 7 芯 | |||||
| 7×1.5 | 7/0.53 | 0.7 | 12.4 | 225 | |
| 7×2.5 | 7/0.67 | 0.7 | 13.8 | 303 | |
| 7×4 | 7/0.85 | 0.7 | 15.5 | 422 | |
| 10 芯 | |||||
| 10×1.5 | 7/0.53 | 0.7 | 15.6 | 325 | |
| 10×2.5 | 7/0.67 | 0.7 | 17.5 | 426 | |
| 10×4 | 7/0.85 | 0.7 | 19.7 | 597 | |
| 12 芯 | |||||
| 12×1.5 | 7/0.53 | 0.7 | 16.2 | 370 | |
| 12×2.5 | 7/0.67 | 0.7 | 18.1 | 489 | |
| 12×4 | 7/0.85 | 0.7 | 20.3 | 690 | |
| 19 芯 | |||||
| 19×1.5 | 7/0.53 | 0.7 | 19.0 | 516 | |
| 19×2.5 | 7/0.67 | 0.7 | 21.3 | 725 | |
| 19×4 | 7/0.85 | 0.7 | 24.0 | 1037 | |
| 27 芯 | |||||
| 27×1.5 | 7/0.53 | 0.7 | 22.7 | 712 | |
| 27×2.5 | 7/0.67 | 0.7 | 25.5 | 1004 | |
| 27×4 | 7/0.85 | 0.7 | 28.8 | 1445 | |
| 37 芯 | |||||
| 37×1.5 | 7/0.53 | 0.7 | 25.5 | 941 | |
| 37×2.5 | 7/0.67 | 0.7 | 28.7 | 1334 | |
| 37×4 | 7/0.85 | 0.7 | 32.5 | 1932 | |
| 48 芯 | |||||
| 48×1.5 | 7/0.53 | 0.7 | 29.0 | 1186 | |
| 48×2.5 | 7/0.67 | 0.7 | 32.9 | 1706 | |
| 48×4 | 7/0.85 | 0.7 | 37.3 | 2479 | |
注：其他导体规格可根据客户需求。
| 导体操作温度 | 90°C |
| 周围环境 | 30°C |
| 2根电缆单相交流或者直流电 | 3根或者4根电缆三相交流电 | 2根电缆单相交流或者直流电 | 3根或者4根电缆三相交流电 | 2根电缆单相交流或者直流电电缆水平分开或者紧挨着 | 3根或 者4根电缆三相交流电电缆水平分开或者紧挨着 | 2根电缆单相交流或者直流电缆水平分开或者紧挨着 | 3根或者4根电缆三相交流电电缆水平分开或者紧挨着 | 2根电缆单相交流或者直流3根电缆三相交流电 | 2根电缆单相交流或者直流3根电缆三相交流电 | 3根电缆三相分开3相交流电 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| mm² | A | A | A | A | A | A | A | A | A | A | A |
| 1.5 | 18 | 17 | 22 | 19 | 25 | 23 | - | - | - | - | - |
| 2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
| 4 | 33 | 30 | 40 | 35 | 46 | 41 | - | - | - | - | - |
| 6 | 43 | 39 | 51 | 45 | 59 | 54 | - | - | - | - | - |
| 10 | 58 | 53 | 71 | 63 | 81 | 74 | - | - | - | - | - |
| 16 | 76 | 70 | 95 | 85 | 109 | 99 | - | - | - | - | - |
| 25 | 100 | 91 | 126 | 111 | 143 | 130 | 158 | 140 | 183 | 163 | 138 |
| 35 | 125 | 111 | 156 | 138 | 176 | 161 | 195 | 176 | 226 | 203 | 171 |
| 50 | 149 | 135 | 189 | 168 | 228 | 209 | 293 | 215 | 274 | 246 | 209 |
| 70 | 189 | 170 | 240 | 214 | 293 | 268 | 308 | 279 | 351 | 318 | 270 |
| 95 | 228 | 205 | 290 | 259 | 355 | 326 | 375 | 341 | 426 | 389 | 330 |
| 120 | 263 | 235 | 336 | 299 | 413 | 379 | 436 | 398 | 495 | 453 | 385 |
| 150 | 300 | 270 | 375 | 328 | 476 | 436 | 505 | 461 | 570 | 524 | 445 |
| 185 | 341 | 306 | 426 | 370 | 545 | 500 | 579 | 530 | 651 | 600 | 511 |
| 240 | 400 | 358 | 500 | 433 | 644 | 590 | 686 | 630 | 769 | 711 | 606 |
| 300 | 459 | 410 | 573 | 493 | 743 | 681 | 794 | 730 | 886 | 824 | 701 |
| 400 | - | - | 684 | 584 | 868 | 793 | 915 | 849 | 1065 | 994 | 820 |
| 500 | - | - | 783 | 666 | 990 | 904 | 1044 | 973 | 1228 | 1150 | 936 |
| 导体截面积 | 2根电缆直流电 | 2根电线单相交流电 | 3或4根电缆单相交流电 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 参考方法3和4（附在墙上的导管上等） | 参考方法1和11（直接用线夹夹 住或者置于电缆槽中） | 参考方法3和4（附在墙上的导管上等） | 参考方法1， 11,12（三相分开） | 参考方法1,11（水平相邻分开）） | ||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||||||
| mm² | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | ||||||||||
| 1.5 | 31 | 31 | 27 | 27 | 27 | 27 | ||||||||||
| 2.5 | 19 | 19 | 16 | 16 | 16 | 16 | ||||||||||
| 4 | 33 | 12 | 10 | 10 | 10 | 10 | ||||||||||
| 6 | 7.8 | 7.9 | 6.8 | 6.8 | 6.8 | 6.8 | ||||||||||
| 10 | 4.7 | 4.7 | 4.7 | 4 | 4 | 4 | ||||||||||
| 16 | 2.9 | 2.9 | 2.9 | 2.5 | 2.5 | 2.5 | ||||||||||
| r | × | z | r | × | z | r | × | z | r | × | z | r | × | z | ||
| 25 | 1.85 | 1.85 | 0.31 | 1.90 | 1.85 | 0.190 | 1.85 | 1.60 | 0.27 | 1.65 | 1.600 | 0.165 | 1.600 | 1.600 | 0.190 | 1.600 |
| 35 | 1.35 | 1.35 | 0.29 | 1.35 | 1.35 | 0.180 | 1.35 | 1.15 | 0.25 | 1.15 | 1.150 | 0.155 | 1.50 | 1.150 | 0.180 | 1.150 |
| 50 | 0.99 | 1.00 | 0.29 | 1.05 | 0.99 | 0.180 | 1.00 | 0.87 | 0.25 | 0.90 | 0.860 | 0.155 | 0.870 | 0.860 | 0.180 | 0.870 |
| 70 | 0.68 | 0.70 | 0.28 | 0.75 | 0.68 | 0.175 | 0.71 | 0.60 | 0.24 | 0.65 | 0.590 | 0.150 | 0.610 | 0.590 | 0.175 | 0.620 |
| 95 | 0.49 | 0.51 | 0.27 | 0.58 | 0.49 | 0.170 | 0.52 | 0.44 | 0.23 | 0.50 | 0.430 | 0.145 | 0.450 | 0.430 | 0.170 | 0.460 |
| 120 | 0.39 | 0.41 | 0.26 | 0.48 | 0.39 | 0.165 | 0.43 | 0.35 | 0.23 | 0.42 | 0.340 | 0.140 | 0.370 | 0.340 | 0.165 | 0.380 |
| 150 | 0.32 | 0.33 | 0.26 | 0.43 | 0.32 | 0.165 | 0.36 | 0.29 | 0.23 | 0.37 | 0.280 | 0.140 | 0.310 | 0.280 | 0.165 | 0.320 |
| 185 | 0.25 | 0.27 | 0.26 | 0.37 | 0.26 | 0.165 | 0.30 | 0.23 | 0.23 | 0.32 | 0.220 | 0.140 | 0.260 | 0.220 | 0.165 | 0.280 |
| 240 | 0.19 | 0.21 | 0.26 | 0.33 | 0.20 | 0.160 | 0.25 | 0.185 | 0.22 | 0.29 | 0.170 | 0.140 | 0.220 | 0.170 | 0.165 | 0.240 |
| 300 | 0.155 | 0.175 | 0.25 | 0.31 | 0.16 | 0.160 | 0.22 | 0.150 | 0.22 | 0.27 | 0.140 | 0.140 | 0.195 | 0.135 | 0.160 | 0.210 |
| 400 | 0.12 | 0.140 | 0.25 | 0.29 | 0.13 | 0.155 | 0.20 | 0.125 | 0.22 | 0.25 | 0.110 | 0.135 | 0.175 | 0.110 | 0.160 | 0.195 |
| 500 | 0.093 | 0.120 | 0.25 | 0.28 | 0.105 | 0.155 | 0.185 | 0.100 | 0.22 | 0.24 | 0.090 | 0.135 | 0.160 | 0.088 | 0.160 | 0.180 |
注:
r = 操作温度下导体电阻
x = 电抗
z = 阻抗
