应用
3.8/6.6kV,6.35/11kV,8.7/15kV HF-EPR绝缘，SW2/SW4护套铠装阻燃电力&控制缆（辐射场），中压橡胶绝缘电缆专为船舶和海上移动平台的固定布线而设计，适用于电力&控制应用。
标准
-
BS 6883
-
IEC 60332-3A 阻燃
-
IEC 60754-1; IEC 60754-2 腐蚀性
-
IEC 61034-2 烟密度
-
冷弯和冲击（-40°C）（应要求提供）
-
CSA C22.2 No. 38-95（应要求提供）

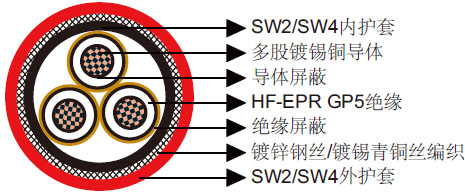

结构
|
导体 |
符合BS 6360/IEC 60228 cl.2的圆形多股镀锡铜丝 |
|
导体屏蔽 |
半导层或带 |
|
绝缘 |
符合BS 7655 1.2标准的HF-EPR GP5 |
|
绝缘屏蔽 |
半导层或带+镀锡铜带 |
|
内护套 |
符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2 |
|
铠装 |
镀锌钢丝编织或镀锡青铜丝编织（单芯） |
|
外护套 |
符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2 |
机械和热性能
|
最小内部弯曲半径 |
15×OD（单芯）；20×OD（三芯） |
|
温度范围 |
-40℃ ~ +90℃ |
尺寸和重量
3.8/6.6kV
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
1×16 |
3.0 |
1.3 |
16.0 |
18.0 |
0.3 |
1.4 |
20.2 |
23.0 |
790 |
|
1×25 |
3.0 |
1.3 |
17.6 |
19.7 |
0.3 |
1.5 |
21.9 |
24.9 |
950 |
|
1×35 |
3.0 |
1.4 |
18.7 |
20.8 |
0.3 |
1.5 |
23.0 |
26.0 |
1060 |
|
1×50 |
3.0 |
1.4 |
19.9 |
22.3 |
0.3 |
1.6 |
24.4 |
27.4 |
1320 |
|
1×70 |
3.0 |
1.5 |
21.8 |
24.3 |
0.3 |
1.7 |
26.5 |
29.6 |
1610 |
|
1×95 |
3.0 |
1.6 |
23.7 |
26.3 |
0.3 |
1.8 |
28.6 |
31.8 |
1930 |
|
1×120 |
3.0 |
1.6 |
25.4 |
28.0 |
0.3 |
1.8 |
30.2 |
33.9 |
2260 |
|
1×150 |
3.0 |
1.7 |
27.0 |
29.8 |
0.45 |
1.9 |
32.8 |
36.6 |
2760 |
|
1×185 |
3.0 |
1.8 |
29.0 |
32.1 |
0.45 |
2.0 |
35.0 |
38.9 |
3210 |
|
1×240 |
3.0 |
1.9 |
31.7 |
35.0 |
0.45 |
2.1 |
37.9 |
41.9 |
3960 |
|
1×300 |
3.0 |
2.0 |
34.3 |
37.6 |
0.45 |
2.2 |
40.6 |
45.1 |
4660 |
|
1×400 |
3.0 |
2.1 |
37.6 |
41.4 |
0.45 |
2.4 |
44.4 |
49.0 |
5470 |
|
1×500 |
3.2 |
2.3 |
41.4 |
45.4 |
0.45 |
2.5 |
48.4 |
53.6 |
6610 |
|
1×630 |
3.2 |
2.4 |
45.1 |
49.2 |
0.45 |
2.7 |
52.4 |
57.8 |
8230 |
|
3×16 |
3.0 |
1.8 |
32.7 |
36.0 |
0.45 |
2.1 |
38.9 |
43.3 |
2610 |
|
3×25 |
3.0 |
2.0 |
36.5 |
39.9 |
0.45 |
2.2 |
42.9 |
47.5 |
3220 |
|
3×35 |
3.0 |
2.0 |
38.4 |
41.9 |
0.45 |
2.3 |
44.9 |
49.6 |
3700 |
|
3×50 |
3.0 |
2.2 |
41.3 |
45.3 |
0.45 |
2.4 |
48.1 |
53.3 |
4360 |
|
3×70 |
3.0 |
2.3 |
45.3 |
49.4 |
0.45 |
2.6 |
52.4 |
57.4 |
5410 |
|
3×95 |
3.0 |
2.5 |
49.3 |
53.9 |
0.45 |
2.8 |
56.8 |
62.4 |
6710 |
|
3×120 |
3.0 |
2.6 |
53.1 |
57.8 |
0.45 |
2.9 |
60.8 |
67.0 |
7770 |
|
3×150 |
3.0 |
2.7 |
56.6 |
61.4 |
0.45 |
3.1 |
64.6 |
70.9 |
9160 |
|
3×185 |
3.0 |
2.9 |
60.8 |
66.1 |
0.45 |
3.2 |
69.1 |
76.0 |
10430 |
|
3×240 |
3.0 |
3.1 |
66.6 |
72.2 |
0.45 |
3.5 |
75.5 |
82.6 |
12840 |
6.35/11kV
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
1×16 |
3.4 |
1.3 |
16.8 |
18.8 |
0.3 |
1.5 |
21.1 |
24 |
810 |
|
1×25 |
3.4 |
1.4 |
18.6 |
20.7 |
0.3 |
1.5 |
22.9 |
25.9 |
980 |
|
1×35 |
3.4 |
1.4 |
19.4 |
21.9 |
0.3 |
1.6 |
24.0 |
27.0 |
1110 |
|
1×50 |
3.4 |
1.5 |
20.8 |
23.3 |
0.3 |
1.6 |
25.3 |
28.4 |
1360 |
|
1×70 |
3.4 |
1.5 |
22.6 |
25.1 |
0.3 |
1.7 |
27.3 |
30.4 |
1660 |
|
1×95 |
3.4 |
1.6 |
24.4 |
27.1 |
0.3 |
1.8 |
29.3 |
33.0 |
1970 |
|
1×120 |
3.4 |
1.7 |
26.3 |
29.0 |
0.45 |
1.9 |
32.1 |
35.9 |
2360 |
|
1×150 |
3.4 |
1.7 |
27.8 |
30.6 |
0.45 |
2.0 |
33.8 |
37.6 |
2810 |
|
1×185 |
3.4 |
1.8 |
29.8 |
32.9 |
0.45 |
2.0 |
35.8 |
39.7 |
3260 |
|
1×240 |
3.4 |
1.9 |
32.5 |
35.8 |
0.45 |
2.2 |
38.9 |
43.3 |
4020 |
|
1×300 |
3.4 |
2.0 |
35.0 |
38.4 |
0.45 |
2.3 |
41.6 |
46.1 |
4760 |
|
1×400 |
3.4 |
2.1 |
38.4 |
41.9 |
0.45 |
2.4 |
45.1 |
49.8 |
5610 |
|
1×500 |
3.4 |
2.3 |
41.8 |
45.8 |
0.45 |
2.5 |
48.8 |
54.0 |
6820 |
|
1×630 |
3.4 |
2.4 |
45.5 |
49.6 |
0.45 |
2.7 |
52.8 |
58.2 |
8480 |
|
3×16 |
3.4 |
1.9 |
34.5 |
37.9 |
0.45 |
2.1 |
40.7 |
45.2 |
2660 |
|
3×25 |
3.4 |
2.0 |
38.2 |
41.6 |
0.45 |
2.3 |
44.7 |
49.4 |
3310 |
|
3×35 |
3.4 |
2.1 |
40.2 |
44.1 |
0.45 |
2.4 |
47.0 |
51.7 |
3960 |
|
3×50 |
3.4 |
2.2 |
43.0 |
47.0 |
0.45 |
2.5 |
50.0 |
55.2 |
4570 |
|
3×70 |
3.4 |
2.4 |
47.1 |
51.3 |
0.45 |
2.7 |
54.4 |
59.9 |
5610 |
|
3×95 |
3.4 |
2.5 |
51.0 |
55.6 |
0.45 |
2.8 |
58.5 |
64.5 |
6820 |
|
3×120 |
3.4 |
2.7 |
55.0 |
59.8 |
0.45 |
3.0 |
62.9 |
69.1 |
8070 |
|
3×150 |
3.4 |
2.8 |
58.4 |
63.3 |
0.45 |
3.1 |
66.5 |
72.8 |
9260 |
|
3×185 |
3.4 |
3.0 |
62.7 |
68.1 |
0.45 |
3.3 |
71.2 |
78.1 |
10960 |
|
3×240 |
3.4 |
3.2 |
68.5 |
74.1 |
0.45 |
3.6 |
77.5 |
85.2 |
13390 |
8.7/15kV
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
1×25 |
4.5 |
1.5 |
20.9 |
23.4 |
0.3 |
1.6 |
25.4 |
28.5 |
1150 |
|
1×35 |
4.5 |
1.5 |
21.7 |
24.3 |
0.3 |
1.7 |
26.4 |
29.6 |
1260 |
|
1×50 |
4.5 |
1.5 |
22.9 |
25.5 |
0.3 |
1.7 |
27.6 |
30.8 |
1510 |
|
1×70 |
4.5 |
1.6 |
24.9 |
27.5 |
0.3 |
1.8 |
29.8 |
33.4 |
1770 |
|
1×95 |
4.5 |
1.7 |
26.7 |
29.5 |
0.45 |
1.9 |
32.6 |
36.3 |
2270 |
|
1×120 |
4.5 |
1.8 |
28.6 |
31.4 |
0.45 |
2.0 |
34.6 |
38.5 |
2730 |
|
1×150 |
4.5 |
1.8 |
30.1 |
33.3 |
0.45 |
2.1 |
36.3 |
40.2 |
3020 |
|
1×185 |
4.5 |
1.9 |
32.1 |
35.3 |
0.45 |
2.1 |
38.3 |
42.3 |
3490 |
|
1×240 |
4.5 |
2.0 |
34.8 |
38.2 |
0.45 |
2.2 |
41.2 |
45.7 |
4260 |
|
1×300 |
4.5 |
2.1 |
37.3 |
40.8 |
0.45 |
2.4 |
44.1 |
48.7 |
4810 |
|
1×400 |
4.5 |
2.2 |
40.7 |
44.6 |
0.45 |
2.5 |
47.6 |
52.4 |
6160 |
|
1×500 |
4.5 |
2.4 |
44.1 |
48.2 |
0.45 |
2.6 |
51.3 |
56.6 |
7330 |
|
1×630 |
4.5 |
2.5 |
47.8 |
52.0 |
0.45 |
2.8 |
55.3 |
60.8 |
8800 |
|
3×25 |
4.5 |
2.2 |
43.1 |
47.1 |
0.45 |
2.5 |
50.1 |
55.4 |
3610 |
|
3×35 |
4.5 |
2.3 |
45.2 |
49.2 |
0.45 |
2.6 |
52.3 |
57.7 |
4510 |
|
3×50 |
4.5 |
2.4 |
47.9 |
52.1 |
0.45 |
2.7 |
55.3 |
60.8 |
5210 |
|
3×70 |
4.5 |
2.6 |
52.1 |
56.7 |
0.45 |
2.9 |
59.8 |
65.9 |
6390 |
|
3×95 |
4.5 |
2.7 |
55.9 |
60.7 |
0.45 |
3.0 |
63.8 |
70.1 |
7660 |
|
3×120 |
4.5 |
2.9 |
59.9 |
64.9 |
0.45 |
3.2 |
68.2 |
75.1 |
8810 |
|
3×150 |
4.5 |
3.0 |
63.3 |
68.7 |
0.45 |
3.3 |
71.8 |
78.8 |
10070 |
|
3×185 |
4.5 |
3.2 |
67.6 |
73.2 |
0.45 |
3.5 |
76.5 |
83.7 |
11420 |
