应用
1.9/3.3kV,3.3/3.3kV HF-EPR绝缘，SW2/SW4护套铠装防火电力&控制缆，防火中压橡胶绝缘电缆专为船舶和海上移动平台的固定布线而设计，适合需要耐火完整性的电力和控制应用。
标准
-
BS 7917
-
IEC 60331-31 防火
-
IEC 60332-3A 阻燃
-
IEC 60754-1; IEC 60754-2 腐蚀性
-
IEC 61034-2 烟密度
-
冷弯和冲击（-40°C）（应要求提供）
-
CSA C22.2 No. 38-95（应要求提供）

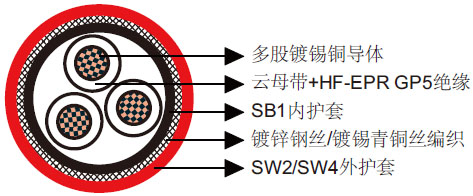

结构
|
导体 |
符合BS 6360/IEC 60228 cl.2的圆形多股镀锡铜丝 |
|
绝缘 |
云母带+符合BS 7655 1.2标准的HF-EPR GP5 |
|
内护套 |
符合BS 7917的无卤热固材料SB1 |
|
铠装 |
镀锌钢丝编织或镀锡青铜丝编织（单芯） |
|
外护套 |
符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2 |
机械和热性能
|
最小内部弯曲半径 |
6×OD |
|
温度范围 |
-40℃ ~ +90℃ |
尺寸和重量
1.9/3.3kV
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
(mm²) |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
1×25 |
2.2 |
1.2 |
13.4 |
15.2 |
0.3 |
1.4 |
17.5 |
19.9 |
687 |
|
1×35 |
2.2 |
1.3 |
14.4 |
16.4 |
0.3 |
1.4 |
18.6 |
21.0 |
806 |
|
1×50 |
2.2 |
1.3 |
15.6 |
17.6 |
0.3 |
1.5 |
20.0 |
22.8 |
983 |
|
1×70 |
2.2 |
1.4 |
17.6 |
19.6 |
0.3 |
1.6 |
22.1 |
25.0 |
1283 |
|
1×95 |
2.4 |
1.5 |
19.8 |
22.3 |
0.3 |
1.7 |
24.5 |
27.6 |
1637 |
|
1×120 |
2.4 |
1.6 |
21.7 |
24.2 |
0.3 |
1.7 |
26.4 |
29.5 |
1997 |
|
1×150 |
2.4 |
1.6 |
23.2 |
25.8 |
0.45 |
1.8 |
28.8 |
32.0 |
2439 |
|
1×185 |
2.4 |
1.7 |
25.2 |
27.8 |
0.45 |
1.9 |
31.0 |
34.7 |
2933 |
|
1×240 |
2.4 |
1.8 |
27.9 |
30.7 |
0.45 |
2.0 |
33.9 |
37.7 |
3671 |
|
1×300 |
2.4 |
1.9 |
30.4 |
33.6 |
0.45 |
2.1 |
36.6 |
40.5 |
4446 |
|
1×400 |
2.6 |
2.0 |
34.1 |
37.5 |
0.45 |
2.3 |
40.7 |
45.2 |
5435 |
|
1×500 |
2.8 |
2.2 |
38.0 |
41.5 |
0.45 |
2.5 |
44.9 |
49.6 |
6746 |
|
1×630 |
2.8 |
2.3 |
41.6 |
45.6 |
0.45 |
2.6 |
48.8 |
54.0 |
8583 |
|
3×25 |
2.2 |
1.8 |
27.4 |
30.1 |
0.45 |
2.0 |
33.4 |
37.2 |
2072 |
|
3×35 |
2.2 |
1.8 |
29.3 |
32.4 |
0.45 |
2.1 |
35.5 |
39.3 |
2422 |
|
3×50 |
2.2 |
1.9 |
32.1 |
35.3 |
0.45 |
2.2 |
38.4 |
42.8 |
2977 |
|
3×70 |
2.2 |
2.1 |
36.2 |
39.6 |
0.45 |
2.4 |
42.9 |
47.5 |
3920 |
|
3×95 |
2.4 |
2.3 |
41.0 |
44.9 |
0.45 |
2.6 |
48.2 |
53.4 |
5041 |
|
3×120 |
2.4 |
2.4 |
44.9 |
48.9 |
0.45 |
2.7 |
52.2 |
57.6 |
6165 |
|
3×150 |
2.4 |
2.6 |
48.4 |
53.0 |
0.45 |
2.9 |
56.2 |
61.7 |
7333 |
|
3×185 |
2.4 |
2.7 |
52.5 |
57.2 |
0.45 |
3.0 |
60.5 |
66.6 |
8800 |
|
3×240 |
2.4 |
3.0 |
58.5 |
63.8 |
0.45 |
3.3 |
67.0 |
73.4 |
11172 |
|
3×300 |
2.4 |
3.2 |
64.0 |
69.4 |
0.45 |
3.5 |
72.8 |
79.9 |
13587 |
3.3/3.3kV
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
(mm²) |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
1×25 |
3.0 |
1.3 |
15.1 |
17.1 |
0.3 |
1.5 |
19.4 |
22.3 |
789 |
|
1×35 |
3.0 |
1.3 |
16.0 |
18.0 |
0.3 |
1.5 |
20.3 |
23.2 |
900 |
|
1×50 |
3.0 |
1.4 |
17.4 |
19.4 |
0.3 |
1.6 |
21.9 |
24.8 |
1097 |
|
1×70 |
3.0 |
1.5 |
19.3 |
21.7 |
0.3 |
1.6 |
23.8 |
26.8 |
1392 |
|
1×95 |
3.0 |
1.5 |
21.0 |
23.5 |
0.3 |
1.7 |
25.7 |
28.8 |
1715 |
|
1×120 |
3.0 |
1.6 |
22.9 |
25.4 |
0.3 |
1.8 |
27.8 |
30.9 |
2097 |
|
1×150 |
3.0 |
1.7 |
24.5 |
27.2 |
0.45 |
1.9 |
30.3 |
34.0 |
2568 |
|
1×185 |
3.0 |
1.7 |
26.3 |
29.0 |
0.45 |
2.0 |
32.3 |
36.1 |
3050 |
|
1×240 |
3.0 |
1.8 |
29.0 |
32.2 |
0.45 |
2.1 |
35.2 |
39.1 |
3798 |
|
1×300 |
3.0 |
1.9 |
31.6 |
34.8 |
0.45 |
2.2 |
37.9 |
41.9 |
4582 |
|
1×400 |
3.0 |
2.1 |
35.1 |
38.5 |
0.45 |
2.3 |
41.7 |
46.2 |
5533 |
|
1×500 |
3.2 |
2.2 |
38.7 |
42.6 |
0.45 |
2.5 |
45.7 |
50.4 |
6828 |
|
1×630 |
3.2 |
2.4 |
43.6 |
46.6 |
0.45 |
2.6 |
49.7 |
55.0 |
8712 |
|
3×25 |
3.0 |
1.9 |
30.9 |
34.1 |
0.45 |
2.1 |
37.1 |
41.1 |
2358 |
|
3×35 |
3.0 |
2.0 |
33.0 |
36.2 |
0.45 |
2.2 |
39.4 |
43.8 |
2747 |
|
3×50 |
3.0 |
2.1 |
35.8 |
39.1 |
0.45 |
2.3 |
42.3 |
46.9 |
3325 |
|
3×70 |
3.0 |
2.2 |
39.7 |
43.5 |
0.45 |
2.5 |
46.6 |
51.4 |
4274 |
|
3×95 |
3.0 |
2.4 |
43.7 |
47.7 |
0.45 |
2.7 |
51.1 |
56.4 |
5347 |
|
3×120 |
3.0 |
2.5 |
47.5 |
51.7 |
0.45 |
2.8 |
55.1 |
60.6 |
6493 |
|
3×150 |
3.0 |
2.7 |
51.1 |
55.7 |
0.45 |
3.0 |
59.0 |
65.1 |
7684 |
|
3×185 |
3.0 |
2.8 |
55.2 |
60.0 |
0.45 |
3.2 |
63.5 |
69.8 |
9213 |
|
3×240 |
3.0 |
3.1 |
61.2 |
66.6 |
0.45 |
3.4 |
69.9 |
76.8 |
11583 |
|
3×300 |
3.0 |
3.3 |
66.6 |
72.2 |
0.45 |
3.6 |
75.7 |
82.9 |
14031 |
