应用
0.6/1kV HF-EPR绝缘,SW2/SW4护套非铠装阻燃电力&控制缆，中压橡胶绝缘电缆专为船舶和海上移动平台的固定布线而设计，适用于电力&控制应用。
标准
-
BS 6883
-
IEC 60332-3A 阻燃
-
IEC 60754-1; IEC 60754-2 腐蚀性
-
IEC 61034-2 烟密度
-
冷弯和冲击（-40°C）（应要求提供）
-
CSA C22.2 No. 38-95（应要求提供）

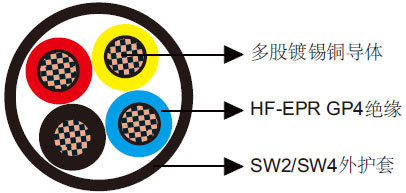

结构
|
导体 |
符合BS 6360/IEC 60228 cl.2的圆形多股镀锡铜丝 |
|
绝缘 |
符合BS 7655 1.2的HF-EPR GP4 |
|
外护套 |
符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2 |
机械和热性能
|
最小内部弯曲半径 |
6×OD (OD>25mm); 4×OD (OD ≤25mm) |
|
温度范围 |
-40℃ ~ +90℃ |
尺寸和重量
单芯电缆
|
结构芯数×截面积 |
标称绝缘厚度 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
kg/km |
|
1×4 |
1.0 |
1.0 |
6.3 |
7.6 |
85 |
|
1×6 |
1.0 |
1.0 |
6.8 |
8.1 |
120 |
|
1×10 |
1.0 |
1.0 |
7.7 |
9.1 |
165 |
|
1×16 |
1.0 |
1.1 |
8.9 |
10.3 |
230 |
|
1×25 |
1.2 |
1.2 |
11.1 |
12.8 |
345 |
|
1×35 |
1.2 |
1.2 |
12.0 |
13.7 |
445 |
|
1×50 |
1.4 |
1.3 |
13.7 |
15.5 |
600 |
|
1×70 |
1.4 |
1.3 |
15.5 |
17.4 |
810 |
|
1×95 |
1.6 |
1.4 |
17.7 |
19.8 |
1100 |
|
1×120 |
1.6 |
1.5 |
19.6 |
22.0 |
1360 |
|
1×150 |
1.8 |
1.6 |
21.6 |
24.2 |
1650 |
|
1×185 |
2.0 |
1.7 |
24.0 |
26.6 |
2070 |
|
1×240 |
2.2 |
1.8 |
27.1 |
29.9 |
2670 |
|
1×300 |
2.4 |
1.9 |
30.0 |
33.2 |
3340 |
多芯电缆
|
结构芯数×截面积 |
标称绝缘厚度 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
kg/km |
|
2×1 |
0.8 |
1.0 |
7.5 |
8.8 |
100 |
|
2×1.5 |
0.8 |
1.1 |
8.2 |
9.6 |
125 |
|
2×2.5 |
0.8 |
1.1 |
9.0 |
10.4 |
160 |
|
2×4 |
1.0 |
1.2 |
11.0 |
12.7 |
235 |
|
2×6 |
1.0 |
1.2 |
12.1 |
13.8 |
300 |
|
2×10 |
1.0 |
1.3 |
14.1 |
15.9 |
415 |
|
2×16 |
1.0 |
1.4 |
16.3 |
18.3 |
590 |
|
2×25 |
1.2 |
1.5 |
20.4 |
22.9 |
890 |
|
2×35 |
1.2 |
1.6 |
22.4 |
24.9 |
1150 |
|
2×50 |
1.4 |
1.7 |
25.7 |
28.4 |
1570 |
|
2×70 |
1.4 |
1.9 |
29.6 |
32.7 |
2140 |
|
2×95 |
1.6 |
2.1 |
34.1 |
37.4 |
2930 |
|
2×120 |
1.6 |
2.2 |
37.7 |
41.1 |
3600 |
|
3×1 |
0.8 |
1.1 |
8.2 |
9.5 |
110 |
|
3×1.5 |
0.8 |
1.1 |
8.7 |
10.1 |
150 |
|
3×2.5 |
0.8 |
1.1 |
9.6 |
11.0 |
190 |
|
3×4 |
1.0 |
1.2 |
11.7 |
13.4 |
280 |
|
3×6 |
1.0 |
1.2 |
12.9 |
14.7 |
370 |
|
3×10 |
1.0 |
1.3 |
15.0 |
17.0 |
505 |
|
3×16 |
1.0 |
1.4 |
17.4 |
19.4 |
750 |
|
3×25 |
1.2 |
1.6 |
22.0 |
24.6 |
1150 |
|
3×35 |
1.2 |
1.7 |
24.1 |
26.7 |
1490 |
|
3×50 |
1.4 |
1.8 |
27.7 |
30.5 |
2030 |
|
3×70 |
1.4 |
2.0 |
31.8 |
35.1 |
2790 |
|
3×95 |
1.6 |
2.2 |
36.7 |
40.1 |
3820 |
|
3×120 |
1.6 |
2.3 |
40.5 |
44.4 |
4710 |
|
3×150 |
1.8 |
2.5 |
44.9 |
49.0 |
5710 |
|
3×185 |
2.0 |
2.7 |
50.1 |
54.6 |
7180 |
|
3×240 |
2.2 |
2.9 |
56.7 |
61.5 |
9310 |
|
3×300 |
2.4 |
3.2 |
63.1 |
68.6 |
10860 |
|
4×1 |
0.8 |
1.1 |
8.9 |
10.3 |
140 |
|
4×1.5 |
0.8 |
1.1 |
9.5 |
10.9 |
175 |
|
4×2.5 |
0.8 |
1.1 |
10.5 |
12.1 |
225 |
|
4×4 |
1.0 |
1.2 |
12.9 |
14.6 |
340 |
|
4×6 |
1.0 |
1.3 |
14.4 |
16.2 |
465 |
|
4×10 |
1.0 |
1.4 |
16.7 |
18.7 |
640 |
|
4×16 |
1.0 |
1.5 |
19.4 |
21.8 |
960 |
|
4×25 |
1.2 |
1.7 |
24.5 |
27.1 |
1550 |
|
4×35 |
1.2 |
1.8 |
26.8 |
29.5 |
1920 |
|
4×50 |
1.4 |
1.9 |
30.8 |
34.0 |
2600 |
|
4×70 |
1.4 |
2.1 |
35.4 |
38.8 |
3570 |
|
4×95 |
1.6 |
2.3 |
40.8 |
44.7 |
4900 |
|
4×120 |
1.6 |
2.5 |
45.2 |
49.3 |
6070 |
|
4×150 |
1.8 |
2.7 |
50.1 |
54.7 |
7360 |
|
4×185 |
2.0 |
2.9 |
55.8 |
60.7 |
9260 |
|
4×240 |
2.2 |
3.2 |
63.4 |
68.9 |
12030 |
|
5×1.5 |
0.8 |
1.1 |
10.4 |
12.0 |
200 |
|
7×1.5 |
0.8 |
1.2 |
11.5 |
13.2 |
255 |
|
12×1.5 |
0.8 |
1.3 |
15.2 |
17.2 |
405 |
|
19×1.5 |
0.8 |
1.4 |
18.0 |
20.1 |
600 |
|
27×1.5 |
0.8 |
1.6 |
21.9 |
24.5 |
850 |
|
37×1.5 |
0.8 |
1.7 |
24.7 |
27.3 |
1120 |
|
5×2.5 |
0.8 |
1.2 |
11.7 |
13.3 |
270 |
|
7×2.5 |
0.8 |
1.2 |
12.7 |
14.4 |
335 |
|
12×2.5 |
0.8 |
1.4 |
17.1 |
19.1 |
550 |
|
19×2.5 |
0.8 |
1.5 |
20.2 |
22.7 |
830 |
