应用
0.6/1kV HF-EPR绝缘，SW2/SW4护套铠装防火电力&控制缆，防火橡胶绝缘电缆专为船舶和海上移动平台的固定布线而设计而设计，时候需要耐火完整性的电力和控制应用。
标准
-
BS 7917
-
IEC 60331-31 防火
-
IEC 60332-3A 阻燃
-
IEC 60754-1; IEC 60754-2 腐蚀性
-
IEC 61034-2 烟密度
-
冷弯和冲击（-40°C）（应要求提供）
-
CSA C22.2 No. 38-95（应要求提供）

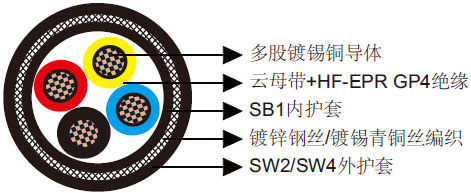

结构
|
导体 |
符合BS 6360/IEC 60228 cl.2的圆形多股镀锡铜丝 |
|
绝缘 |
云母带+符合BS 7655 1.2的HF-EPR GP4 |
|
内护套 |
符合BS 7917的无卤热固材料SB1 |
|
铠装 |
镀锌钢丝编织或镀锡青铜丝编织（单芯） 铜丝编织可应要求提供 |
|
外护套 |
符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2 |
机械和热性能
|
最小内部弯曲半径 |
6×OD |
|
温度范围 |
-40℃ ~ +90℃ |
尺寸和重量
单芯电缆
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
1×4 |
1.0 |
1.0 |
6.7 |
8.0 |
0.3 |
1.1 |
10.2 |
12.1 |
245 |
|
1×6 |
1.0 |
1.0 |
7.2 |
8.5 |
0.3 |
1.1 |
10.8 |
12.6 |
275 |
|
1×10 |
1.0 |
1.0 |
8.1 |
9.5 |
0.3 |
1.2 |
11.9 |
13.8 |
355 |
|
1×16 |
1.0 |
1.1 |
9.3 |
10.7 |
0.3 |
1.2 |
13.1 |
15.0 |
440 |
|
1×25 |
1.2 |
1.2 |
11.5 |
13.2 |
0.3 |
1.3 |
15.4 |
17.7 |
600 |
|
1×35 |
1.2 |
1.2 |
12.3 |
14.1 |
0.3 |
1.4 |
16.5 |
18.8 |
720 |
|
1×50 |
1.4 |
1.3 |
14.1 |
15.9 |
0.3 |
1.4 |
18.2 |
20.6 |
910 |
|
1×70 |
1.4 |
1.3 |
15.8 |
17.8 |
0.3 |
1.5 |
20.2 |
23.0 |
1170 |
|
1×95 |
1.6 |
1.4 |
18.1 |
20.2 |
0.3 |
1.6 |
22.6 |
25.6 |
1510 |
|
1×120 |
1.6 |
1.5 |
20.0 |
22.4 |
0.3 |
1.7 |
24.7 |
27.7 |
1830 |
|
1×150 |
1.8 |
1.6 |
22.0 |
24.6 |
0.3 |
1.8 |
26.9 |
30.1 |
2160 |
|
1×185 |
2.0 |
1.7 |
24.4 |
27.0 |
0.45 |
1.9 |
30.2 |
33.9 |
2790 |
|
1×240 |
2.2 |
1.8 |
27.5 |
30.3 |
0.45 |
2.0 |
33.5 |
37.3 |
3530 |
|
1×300 |
2.4 |
1.9 |
30.4 |
33.6 |
0.45 |
2.1 |
36.6 |
40.5 |
4280 |
多芯电缆
|
结构芯数×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
最小内护套外直径 |
最大内护套外直径 |
标称铠装丝直径 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
2×1.5 |
0.8 |
1.1 |
9.0 |
10.4 |
0.3 |
1.2 |
12.7 |
14.7 |
310 |
|
2×1.5 |
0.8 |
1.1 |
9.0 |
10.4 |
0.3 |
1.2 |
12.7 |
14.7 |
310 |
|
2×2.5 |
0.8 |
1.1 |
9.8 |
11.4 |
0.3 |
1.2 |
13.6 |
15.5 |
355 |
|
2×4 |
1.0 |
1.2 |
11.8 |
13.5 |
0.3 |
1.3 |
15.7 |
18.0 |
475 |
|
2×6 |
1.0 |
1.2 |
12.9 |
14.6 |
0.3 |
1.4 |
17.0 |
19.3 |
580 |
|
2×10 |
1.0 |
1.3 |
14.9 |
16.8 |
0.3 |
1.4 |
19.0 |
21.4 |
750 |
|
2×16 |
1.0 |
1.4 |
17.1 |
19.1 |
0.3 |
1.5 |
21.4 |
24.3 |
980 |
|
2×25 |
1.2 |
1.5 |
21.2 |
23.7 |
0.3 |
1.7 |
25.9 |
29.0 |
1380 |
|
2×35 |
1.2 |
1.6 |
23.1 |
25.7 |
0.3 |
1.8 |
28.0 |
31.2 |
1710 |
|
2×50 |
1.4 |
1.7 |
26.5 |
29.2 |
0.45 |
2.0 |
32.5 |
36.3 |
2370 |
|
2×70 |
1.4 |
1.9 |
30.3 |
33.5 |
0.45 |
2.1 |
36.5 |
40.5 |
3100 |
|
2×95 |
1.6 |
2.1 |
34.9 |
38.2 |
0.45 |
2.3 |
41.4 |
46.0 |
4020 |
|
2×120 |
1.6 |
2.2 |
38.4 |
42.2 |
0.45 |
2.5 |
45.4 |
50.1 |
4870 |
|
3×1.5 |
0.8 |
1.1 |
9.6 |
11.0 |
0.3 |
1.2 |
13.3 |
15.3 |
345 |
|
3×2.5 |
0.8 |
1.1 |
10.4 |
12.1 |
0.3 |
1.3 |
14.4 |
16.4 |
405 |
|
3×4 |
1.0 |
1.2 |
12.6 |
14.3 |
0.3 |
1.3 |
16.5 |
18.8 |
540 |
|
3×6 |
1.0 |
1.2 |
13.8 |
15.5 |
0.3 |
1.4 |
17.9 |
20.2 |
660 |
|
3×10 |
1.0 |
1.3 |
15.9 |
17.8 |
0.3 |
1.5 |
20.2 |
23.0 |
910 |
|
3×16 |
1.0 |
1.4 |
18.2 |
20.3 |
0.3 |
1.6 |
22.8 |
25.7 |
1200 |
|
3×25 |
1.2 |
1.6 |
22.9 |
25.4 |
0.3 |
1.8 |
27.8 |
30.9 |
1760 |
|
3×35 |
1.2 |
1.7 |
24.9 |
27.6 |
0.45 |
1.9 |
30.7 |
34.4 |
2260 |
|
3×50 |
1.4 |
1.8 |
28.5 |
31.3 |
0.45 |
2.0 |
34.5 |
38.4 |
2880 |
|
3×70 |
1.4 |
2.0 |
32.7 |
35.9 |
0.45 |
2.2 |
39.0 |
43.5 |
3800 |
|
3×95 |
1.6 |
2.2 |
37.5 |
41.0 |
0.45 |
2.4 |
44.3 |
48.9 |
4890 |
|
3×120 |
1.6 |
2.3 |
41.3 |
45.3 |
0.45 |
2.6 |
48.5 |
53.7 |
6070 |
|
3×150 |
1.8 |
2.5 |
45.8 |
49.9 |
0.45 |
2.8 |
53.3 |
58.7 |
7270 |
|
3×185 |
2.0 |
2.7 |
50.9 |
55.5 |
0.45 |
3.0 |
58.8 |
64.9 |
8970 |
|
3×240 |
2.2 |
2.9 |
57.5 |
62.4 |
0.45 |
3.2 |
65.8 |
72.2 |
1350 |
|
4×1.5 |
0.8 |
1.1 |
10.5 |
12.1 |
0.3 |
1.3 |
14.4 |
16.4 |
395 |
|
4×2.5 |
0.8 |
1.1 |
11.4 |
13.1 |
0.3 |
1.3 |
15.4 |
17.6 |
465 |
|
4×4 |
1.0 |
1.2 |
13.8 |
15.6 |
0.3 |
1.4 |
17.9 |
20.3 |
640 |
|
4×6 |
1.0 |
1.3 |
15.3 |
17.3 |
0.3 |
1.5 |
19.6 |
22.5 |
790 |
|
4×10 |
1.0 |
1.4 |
17.7 |
19.7 |
0.3 |
1.6 |
22.2 |
25.1 |
1070 |
|
4×16 |
1.0 |
1.5 |
20.3 |
22.8 |
0.3 |
1.7 |
25.0 |
28.1 |
1460 |
|
4×25 |
1.2 |
1.7 |
25.5 |
28.1 |
0.45 |
1.9 |
31.3 |
35.0 |
2140 |
|
4×35 |
1.2 |
1.8 |
27.7 |
30.5 |
0.45 |
2.0 |
33.7 |
37.5 |
2670 |
|
4×50 |
1.4 |
1.9 |
31.8 |
35.0 |
0.45 |
2.2 |
38.1 |
42.1 |
3630 |
|
4×70 |
1.4 |
2.1 |
36.3 |
39.7 |
0.45 |
2.4 |
43.1 |
47.7 |
4740 |
|
4×95 |
1.6 |
2.3 |
41.7 |
45.7 |
0.45 |
2.6 |
48.9 |
54.1 |
6290 |
|
4×120 |
1.6 |
2.5 |
46.2 |
50.3 |
0.45 |
2.8 |
53.7 |
59.2 |
7670 |
|
5×1.5 |
0.8 |
1.1 |
11.4 |
13.1 |
0.3 |
1.3 |
15.4 |
17.6 |
455 |
|
7×1.5 |
0.8 |
1.2 |
12.6 |
14.4 |
0.3 |
1.3 |
16.6 |
18.9 |
530 |
|
12×1.5 |
0.8 |
1.3 |
16.8 |
18.8 |
0.3 |
1.5 |
21.2 |
24.0 |
790 |
|
19×1.5 |
0.8 |
1.4 |
19.9 |
22.4 |
0.3 |
1.6 |
24.4 |
27.5 |
1080 |
|
27×1.5 |
0.8 |
1.6 |
24.3 |
26.9 |
0.3 |
1.8 |
29.2 |
32.8 |
1460 |
|
37×1.5 |
0.8 |
1.7 |
27.4 |
30.4 |
0.45 |
1.9 |
33.2 |
37.0 |
1990 |
|
5×2.5 |
0.8 |
1.2 |
12.7 |
14.4 |
0.3 |
1.3 |
16.6 |
18.9 |
560 |
|
7×2.5 |
0.8 |
1.2 |
13.9 |
15.6 |
0.3 |
1.4 |
18.0 |
20.3 |
650 |
|
12×2.5 |
0.8 |
1.4 |
18.7 |
20.8 |
0.3 |
1.6 |
23.2 |
26.2 |
970 |
|
19×2.5 |
0.8 |
1.5 |
22.1 |
24.7 |
0.3 |
1.7 |
26.8 |
30.0 |
1360 |
