应用
0.6/1kV HF-EPR绝缘，SW2/SW4护套非铠装防火电力&控制缆，防火橡胶绝缘电缆专为船舶和海上移动平台的固定布线而设计而设计，时候需要耐火完整性的电力和控制应用。
标准
-
BS 7917
-
IEC 60331-31 防火
-
IEC 60332-3A 阻燃
-
IEC 60754-1; IEC 60754-2 腐蚀性
-
IEC 61034-2 烟密度
-
冷弯和冲击（-40°C）（应要求提供）
-
CSA C22.2 No. 38-95（应要求提供）

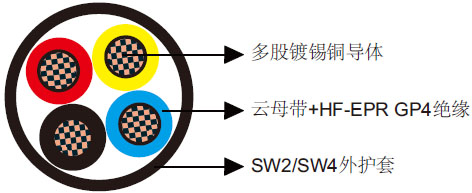

结构
|
导体 |
符合BS 6360/IEC 60228 cl.2的圆形多股镀锡铜丝 |
|
绝缘 |
云母带+符合BS 7655 1.2的HF-EPR GP4 |
|
护套 |
符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2 |
机械和热性能
|
最小内部弯曲半径 |
6×OD (OD>25mm); 4×OD (OD ≤25mm) |
|
温度范围 |
-40℃ ~ +90℃ |
尺寸和重量
单芯电缆
|
结构芯数×截面积 |
标称绝缘厚度 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
kg/km |
|
1×4 |
1.0 |
1.0 |
6.7 |
8.0 |
90 |
|
1×6 |
1.0 |
1.0 |
7.2 |
8.5 |
135 |
|
1×10 |
1.0 |
1.0 |
8.1 |
9.5 |
180 |
|
1×16 |
1.0 |
1.1 |
9.3 |
10.7 |
315 |
|
1×25 |
1.2 |
1.2 |
11.5 |
13.2 |
550 |
|
1×35 |
1.2 |
1.2 |
12.3 |
14.1 |
715 |
|
1×50 |
1.4 |
1.3 |
14.1 |
15.9 |
830 |
|
1×70 |
1.4 |
1.3 |
15.8 |
17.8 |
1110 |
|
1×95 |
1.6 |
1.4 |
18.1 |
20.2 |
1470 |
|
1×120 |
1.6 |
1.5 |
20.0 |
22.4 |
2130 |
|
1×150 |
1.8 |
1.6 |
22.0 |
24.6 |
2475 |
|
1×185 |
2.0 |
1.7 |
24.4 |
27.0 |
2870 |
|
1×240 |
2.2 |
1.8 |
27.5 |
30.3 |
3120 |
|
1×300 |
2.4 |
1.9 |
30.4 |
33.6 |
4060 |
多芯电缆
|
结构芯数×截面积 |
标称绝缘厚度 |
标称外护套厚度 |
最小外径 |
最大外径 |
近似重量 |
|
mm² |
mm |
mm |
mm |
mm |
kg/km |
|
2×1.5 |
0.8 |
1.1 |
9.0 |
10.4 |
145 |
|
2×2.5 |
0.8 |
1.1 |
9.8 |
11.4 |
180 |
|
2×4 |
1.0 |
1.2 |
11.8 |
13.5 |
260 |
|
2×6 |
1.0 |
1.2 |
12.9 |
14.6 |
325 |
|
2×10 |
1.0 |
1.3 |
14.9 |
16.8 |
445 |
|
2×16 |
1.0 |
1.4 |
17.1 |
19.1 |
630 |
|
2×25 |
1.2 |
1.5 |
21.2 |
23.7 |
930 |
|
2×35 |
1.2 |
1.6 |
23.1 |
25.7 |
1210 |
|
2×50 |
1.4 |
1.7 |
26.5 |
29.2 |
1630 |
|
2×70 |
1.4 |
1.9 |
30.3 |
33.5 |
2210 |
|
2×95 |
1.6 |
2.1 |
34.9 |
38.2 |
3010 |
|
2×120 |
1.6 |
2.2 |
38.4 |
42.2 |
3690 |
|
3×1.5 |
0.8 |
1.1 |
9.6 |
11.0 |
170 |
|
3×2.5 |
0.8 |
1.1 |
10.4 |
12.1 |
210 |
|
3×4 |
1.0 |
1.2 |
12.6 |
14.3 |
310 |
|
3×6 |
1.0 |
1.2 |
13.8 |
15.5 |
395 |
|
3×10 |
1.0 |
1.3 |
15.9 |
17.8 |
590 |
|
3×16 |
1.0 |
1.4 |
18.2 |
20.3 |
830 |
|
3×25 |
1.2 |
1.6 |
22.9 |
25.4 |
1270 |
|
3×35 |
1.2 |
1.7 |
24.9 |
27.6 |
1540 |
|
3×50 |
1.4 |
1.8 |
28.5 |
31.3 |
2100 |
|
3×70 |
1.4 |
2.0 |
32.7 |
35.9 |
2870 |
|
3×95 |
1.6 |
2.2 |
37.5 |
41.0 |
3910 |
|
3×120 |
1.6 |
2.3 |
41.3 |
45.3 |
4800 |
|
3×150 |
1.8 |
2.5 |
45.8 |
49.9 |
5810 |
|
3×185 |
2.0 |
2.7 |
50.9 |
55.5 |
7290 |
|
3×240 |
2.2 |
2.9 |
57.5 |
62.4 |
9440 |
|
4×1.5 |
0.8 |
1.1 |
10.5 |
12.1 |
200 |
|
4×2.5 |
0.8 |
1.1 |
11.4 |
13.1 |
250 |
|
4×4 |
1.0 |
1.2 |
13.8 |
15.6 |
375 |
|
4×6 |
1.0 |
1.3 |
15.3 |
17.3 |
495 |
|
4×10 |
1.0 |
1.4 |
17.7 |
19.7 |
740 |
|
4×16 |
1.0 |
1.5 |
20.3 |
22.8 |
1050 |
|
4×25 |
1.2 |
1.7 |
25.5 |
28.1 |
1580 |
|
4×35 |
1.2 |
1.8 |
27.7 |
30.5 |
1960 |
|
4×50 |
1.4 |
1.9 |
31.8 |
35.0 |
2570 |
|
4×70 |
1.4 |
2.1 |
36.3 |
39.7 |
3530 |
|
4×95 |
1.6 |
2.3 |
41.7 |
45.7 |
4850 |
|
4×120 |
1.6 |
2.5 |
46.2 |
50.3 |
5990 |
|
5×1.5 |
0.8 |
1.1 |
11.4 |
13.1 |
220 |
|
7×1.5 |
0.8 |
1.2 |
12.6 |
14.4 |
285 |
|
12×1.5 |
0.8 |
1.3 |
16.8 |
18.8 |
465 |
|
19×1.5 |
0.8 |
1.4 |
19.9 |
22.4 |
680 |
|
27×1.5 |
0.8 |
1.6 |
24.3 |
26.9 |
960 |
|
37×1.5 |
0.8 |
1.7 |
27.4 |
30.4 |
1260 |
|
5×2.5 |
0.8 |
1.2 |
12.7 |
14.4 |
310 |
|
7×2.5 |
0.8 |
1.2 |
13.9 |
15.6 |
375 |
|
12×2.5 |
0.8 |
1.4 |
18.7 |
20.8 |
610 |
|
19×2.5 |
0.8 |
1.5 |
22.1 |
24.7 |
895 |
